SNO 5.0MP WIFI Bullet IPCam SNO-B71-50

  • Model:SNO-B71-50
  • Brand:SNO
  • Weight:0.6kg

Key Specifications/Special Features:1. 5.0MP full HD:Sharp image 2560x2048p video at 18fpsExtremely fluent live streamSupport recording and playback via microSD card (128GB) over 28 days motion detect...

  1. Detailed Information
  2. Download

Key Specifications/Special Features:

1. 5.0MP full HD:
Sharp image 2560x2048p video at 18fps
Extremely fluent live stream
Support recording and playback via microSD card (128GB) over 28 days motion detect recording at mainstream 2560x2048p resolution, ONVIF compatible NVR

2. Waterproof outdoor camera:
Waterproof degree up to IP67
Made of aluminum extremely durable and would not rust
Even in the terrible weather, it can keep the durable and stable operating

3. Sharp night vision: with 3 arrays infrared LED, night vision up to 20m

Long distance makes you see further and clearer also enables high-quality of day and night surveillance

4. Easy to set-up: true plug-and-play camera
Easy to quick install, download the Vitorcam app to your iOS/Android smartphone, scan the QR code from the camera then startup download the IP add search tool from our webpage

5. Excellent compatibility: supports iOS/Android mobile devices app, Windows PC and Apple Mac software and web browsers (IE, Firefox, Safari, Chrome supported)

Please note: this is 2.4GHz supported camera and it does not supports 5GHz networks
Kindly refer the instructional video and the user's manual before use

Easy Wi-Fi setup
1. Plug the camera into the router
2. Download the eye cloud app and install it on your phone
3. Scan the QR code from the camera then startup
4. Enjoy live monitoring video anytime anywhere

Note:you can search eye can app on Google Play or App store to get the app

If the Wi-Fi setup is failed, check by this
Log on the internet via IP add search tool (the print user's manual guide to download) then set up the Wi-Fi
1. SSID and password are correct with the router?
2. Safe mode is the same as Wi-Fi router, WPA-PSK, WPA2-PSK or mix WPA/WPA2 - PSK?
3. Password is not including the special character which is not found on the keyboard

Note:we highly suggest using these cameras with an Android or Apple device
Setup is much simpler and there is less technical knowledge necessary than if you are trying to use it through a computer
Due to the many different variations in routers and hardware/software when setting up via a computer, we do not currently offer supports with setting the cameras up via the computer
We will refer you back to the quick start guide

Easy scan QR code setup:
This camera is simple to set-up your iPhone or Android device
Free downloadable apps and the QR code on the bottom of the camera, setup takes just seconds
Simply download the app, plug-in your camera, scan the QR code during camera setup and you are good to go


Specifications

Item
SNO-B71-50
Image sensor



Image sensor1/3" color CMOS sensor
Display resolution5.0MP full HD MP
LensF: 3.6mm
F: 2.4 (IR lens)
Minimum illumination0.5lux
Lens

Lens typeGlass lens
Viewing angle65 degrees
Video





Image compressionH.265+&H.264+
Image frame rate

Main stream: 2560×2048 (5MP)\18fps

Sub stream: 360p (640x360) at15fps

Third stream: 180p (320x180) at 10fps
Resolutions5.0Mp (2560 x 2048), VGA (640 x 480), QVGA (320 x 240)
Flip mirror imagesVertical/horizontal
Light frequency50-60Hz or outdoor
Video parametersBrightness, contrast
Communication




EthernetOne 10/100Mbps RJ-45
Supports protocolRTSP, HTTP, FTP, TCP/IP, UDP, SMTP, DHCP, PPPoE, DDNS, UPnP, GPRS
Wireless standardIEEE 802.11b/g/n
Wireless securityWEP/WPA/WPA2 encryption
Physical




CompatibleONVIF
Infrared light24 piece array IR LED, night vision up to 30m
Dimensions24.50x18.50x12.00cm
Gross weight1.2kg
Power

Power supply12V DC/1.0A(EU, US, AU adapter or other types optional)
Power consumption12W (maximum)
CertificationsCE, FCC
WarrantyLimited 1-year warranty


5_01

Credibly Clear Videos in 5MP; More Details Captured

Hgher resolution means more image details to be captured. 5-megapixel security camera has a pixel resolution of 2592*1944 You will definitely have the best chance to see every image details.

微信图片_20190324171355

5_03

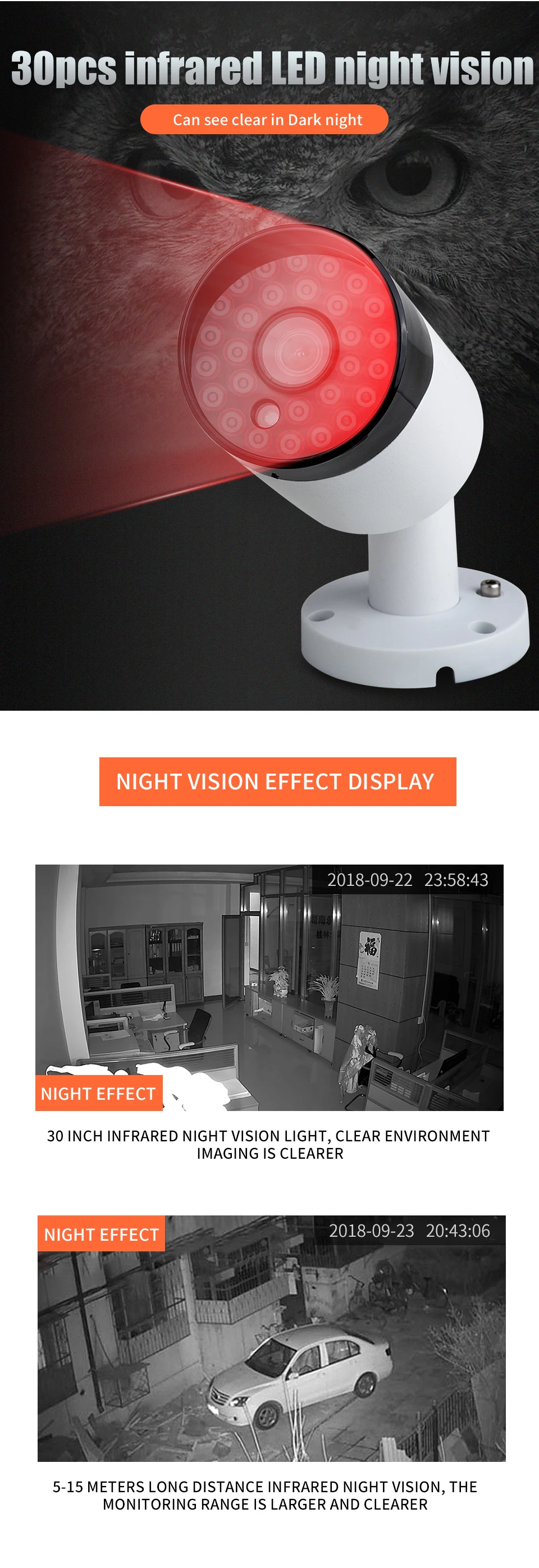

30PCS lights infrared night vision

A good camera is not just an image measurement during the day. The SNO-B71-50  security camera stands out at night with its incredible image. 30PCS infrared LEDs provide long night vision distances (up to 65 feet). The SNO-B71-50   high-definition infrared night vision surveillance camera captures clear video evidence that can be stolen and vandalized in low light conditions where standard security cameras are not working.

Advanced H.265+ Video Compression

H.265+ doubles the coding effieciency, which means that 1. H.265 saves space; 2. store more videos; 3. provide super smooth to view video compared with H.264

Motion Detection mdashSmartest Way for Alerts

Whenever a danger is detected, XI3050A-5MP IP surveillance camera will trigger alerts by immediately sending alert e-mails and pushing notifications to your device. It also uploads and saves captured images/videos to an FTP server.

Remote Viewing, Anytime, from Anywhere

No matter where you are, you can remotely access the camera to see live streaming and stay connected. Remotely view the camera via: free XMeye App on your mobile device, free CMS Client on your computer, IE browsers.

Work with Hilkvision NVR & Dahua NVR by ONVIF Protocol

Have been tested tested our IP Cameras and POE IP Cameras, they are compatible with Hilkvision NVR and Dahua NVR by ONVIF Protocol; Made of Metal Case means they can work longer than that of plasitc; POE moulde is inserted if you select POE IP Camera-- Powered by Internet Cables.
