SNO MINI PTZ Dome 20X Optical Zoom 1080P WIFI IP Camera Outdoor Wireless Onvif Two Way Audio Full Color Night Vision PTZ Cam CamHi SNO-PTZ60W-20 -
SNO MINI PTZ Dome 20X Optical Zoom 1080P WIFI IP Camera Outdoor Wireless Onvif Two Way Audio Full Color Night Vision PTZ Cam CamHi SNO-PTZ60W-20
- Model:SNO-PTZ60W-20
- Brand:SNO
- Weight:2.5kg
SNO MINI PTZ Dome 20X Optical Zoom 1080P WIFI IP Camera Outdoor Wireless Onvif Two Way Audio Full Color Night Vision PTZ Cam CamHi
Features :
Support Full Color Night Vision (Remote Control For CamHi APP)
6pcs Array IR Infrared LEDs +2pcs White Supplement Light,80m Night Vision
Built-in Microphone,Support Two Way Audio Talk Back(With Loud Speaker)
Support HD 1080P High quality resolution ( depend on your order model for different resolution)
Support TF/Micro SD card, up to 128G(Don't included TF Card)
4.7-94mm 20X Optical zoom auto focus lens
Pan tilt rotation, horizontal:355° & vertical:90°Ø
Support P2P, view & anywhere & anytime
Elegant outline and easy installation
Provide android & ios APP (CamHi) and professional CMS PC client software
Wireless Protocols : 802.11b/g/n, 150Mbps, 10-50m
Support 8 preset points
Metal Housing Material,Outdoor Use,Waterproof IP66
Support ONVIF, ONVIF NVR
Specifications:
| Products Model | SNO-PTZ60W-20 |
| Operating system | Embedded Linux OS |
| Effective pixels | 1920*1080 20FPS |
| CMOS Sensor | 1/2.8" CMOS |
| Lens interface type | M12 |
| Lens | 4.7-94mm 20X Optical Zoom Auto Focus Lens |
| View angle | 68.5°-4.2° |
| Min.illumination | 0.05Lux / 0 Lux(IR on) |
| Day&Night mode | Auto IR-CUT |
| Night vision distance | 6pcs Array IR Infrared LEDs +2pcs White Supplement Light,80m Night Vision |
Video compression standard | H.265/H.264 Main Profile/H.264 Baseline |
| Video streaming | Dual streaming |
| Video resolution | First stream: 1080P(1920x1080), 720P(1280x720) |
| Second stream: Q720P(640x480/640x352), QQ720P(320x240/320x176) | |
| JPEG stream :(Monitoring for mobile phones), | |
| Q720P(640x352), QQ720P(320x176) | |
| Video code rate | 32 to 8192Kbps. supports constant bitrate/variable bitrate |
| Video frame rate | 25fps(PAL 50HZ). 30fps(NTSC 60HZ) |
| Audio | Audio compression standard: G.726/G.711 |
| Audio code rate: Rate adaptive | |
| Audio Input: Support, Built-in Microphone | |
| Audio Output: Support Two Way Audio Talk Back(With Loud Speaker) | |
| Image settings | Brightness,saturation,contrast,Sharpness,Exposure,flip,mirror |
| Image enhancement | Backlight compensation,Automatic white balance |
| ,Digital WDR, 3D digital noise reduction | |
| Audio function | Built in Audio Microphone, Support Two Way Audio Talk Back(With Speaker) |
| Motion detecting | Can set 4 independent detection region (1-100 sensitivity can be set) |
| Alarm linkage | Alarm send pictures to the specified mailbox, |
| alarm upload pictures and videos to the FTP server, | |
| alarm write pictures and videos to Micro TF card, alarm message push | |
| Privacy mask | Maximum support 4 users to simultaneously browse |
| OSD | Support camera name, date and time information superimposed |
| User management | Supports user and rights management |
| Simultaneous viewers | maximum support 12 users to simultaneously browse |
| (each stream supports 4 users) | |
| Network protocol | TCP/IP,HTTP,TCP,ICMP,UDP,ARP,IGMP,SMTP, |
| FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP etc. | |
| Connection protocol | Support ONVIF 2.1(backward compatible) |
| Wireless standards | IEEE802.11b. 802.11g. 802.11n Draft |
| Frequency range | 2.4 GHz to 2.4835 GHz |
| Wireless Security | 64/128-bit WEP. WPA/WPA2. WPA-PSK/WPA2-PSK. WPS |
| Transmission rate | 11b: 11Mbps,11g :54Mbps,11n :135Mbps |
| Rotation angle | Horizon:0° to 355°. Vertical: 0° to 90° |
| Horizontal speed | 1° to 40°/S |
| Vertical speed | 1° to 20°/S |
| Preset | Support 8 preset points |
| Power interface | 1 5.5mm power interface |
| Ethernet | 1 RJ45 & Antenna 10M/100M Adaptive Ethernet Interface |

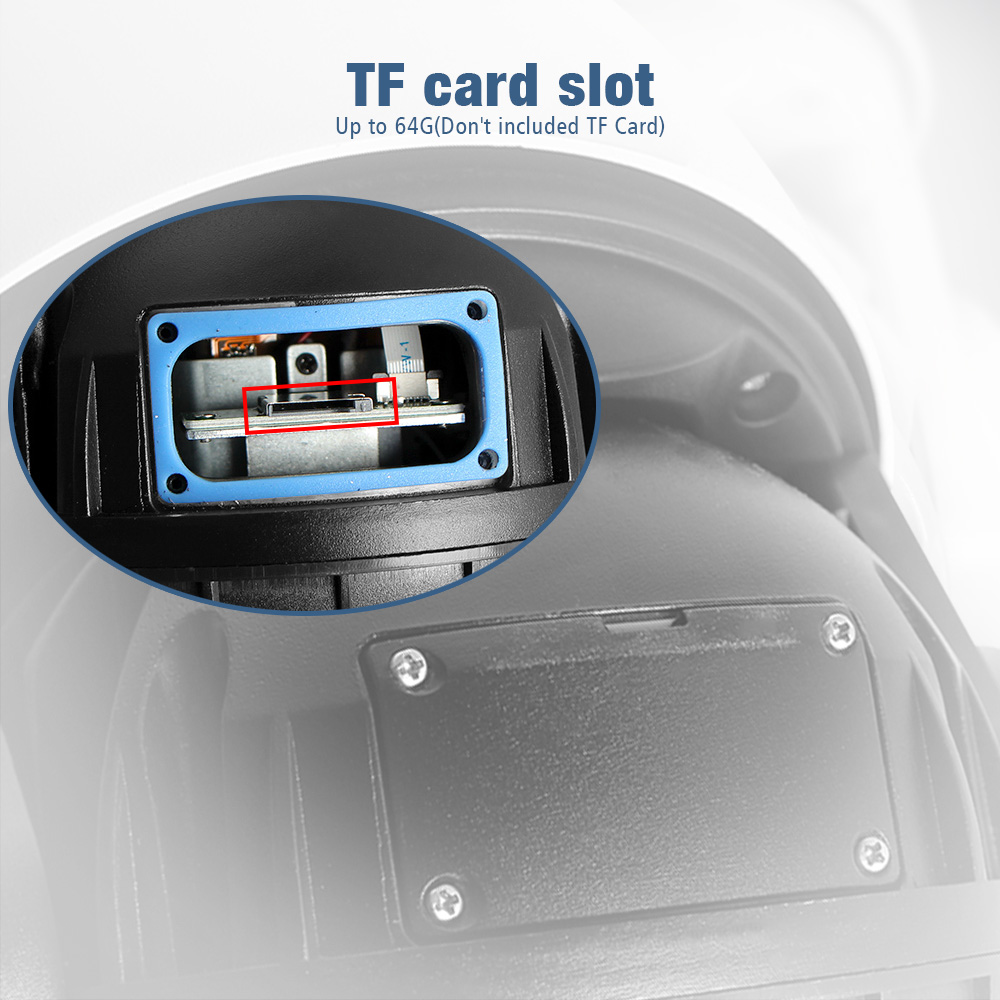

| TF card Slot | 1 TF card slot. up to 128GB (Don't included TF Card) |
| Reset button | Support |
| Power supply | DC 12V 2A |
| power | Day: 3W; Night: 12W |
| Operating temperature | -20 to +60 degree |
| Operating humidity | 10% to 95% |
| Material | Metal Housing ,Outdoor Use,Waterproof IP66 |
| Installation | Rack mounting |
| Size(W×D×H)(mm) | 239*137*215 |
| Weight(kg) | 1.45kg |
Package Size (W×D×H)(mm) | 295*285*160 |
| Package Weight(kg) | 2.15kg |
Packing List:
1*WIFI Dome Speed IP Camera Built-in Mic (Don't included TF Card)
1*Loud Speaker
1*Power Supply
1*CD & Manual
1*Screws Bag
1*Antenna
