SNO 2MP WIFI Wireless Mini PTZ Dome Camera With street lamp SNO-Q40A-20

  • Model:SNO-Q40A-20
  • Brand:SNO
  • Weight:2.5kg

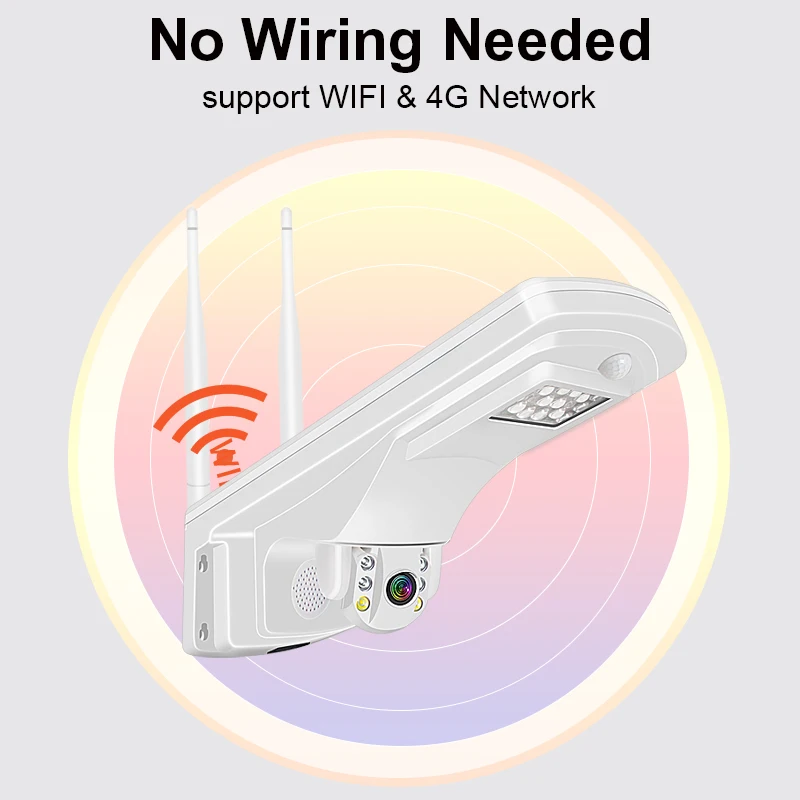

SNO 2MP WIFI Wireless Mini PTZ Dome Camera With street lamp

  1. Detailed Information
  2. Download

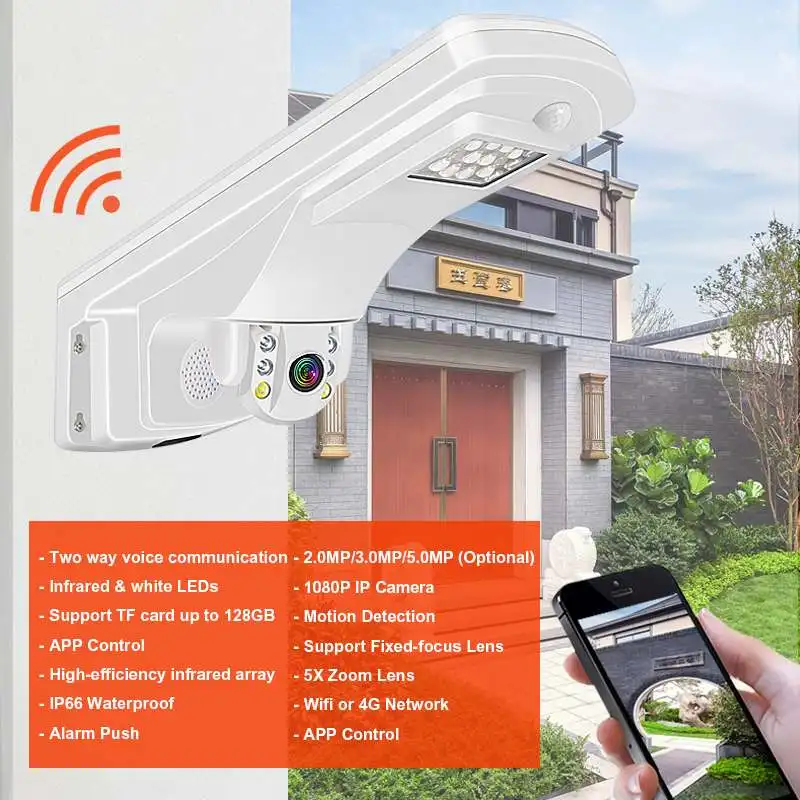

Features :

2.5 Inch Super Mini Size Case PTZ Dome Camera

Support HD 1080P High Quality Resolution

Support TF/Micro SD Card, up to 64G(Don't included TF Card)

6mm Fixed Lens or 2.7-13.5mm 5x Optical Zoom Auto Focus Lens(optional)

Pan Tilt Rotation, Horizontal:355° & Vertical:90°Ø

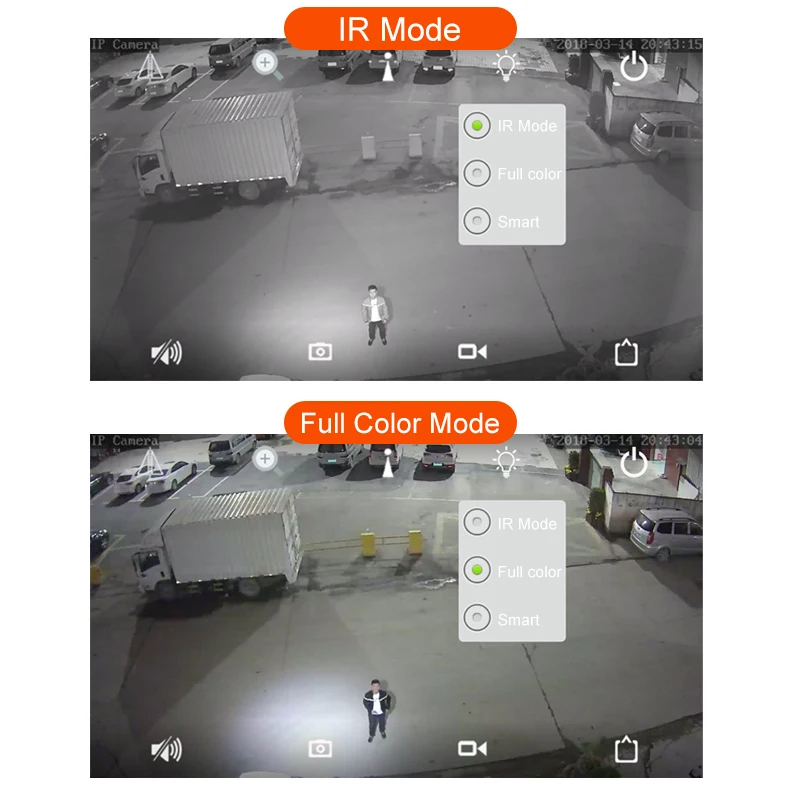

4pcs Array Infrared LEDs or 2pcs White Supplement LEDs. 60m Night Vision

Support P2P, View & Anywhere & Anytime

Elegant Outline and Easy Installation

Provide Android & IOS APP (CamHi) and professional CMS PC client software

ABS Plastic Housing Material,Outdoor Use,Waterproof IP66

Built-in Microphone,Loud Speaker,Support Two Way Audio Talk Back

Microphone Effective Range 15 Meters, Loudspeaker Effective Range 60 Meters

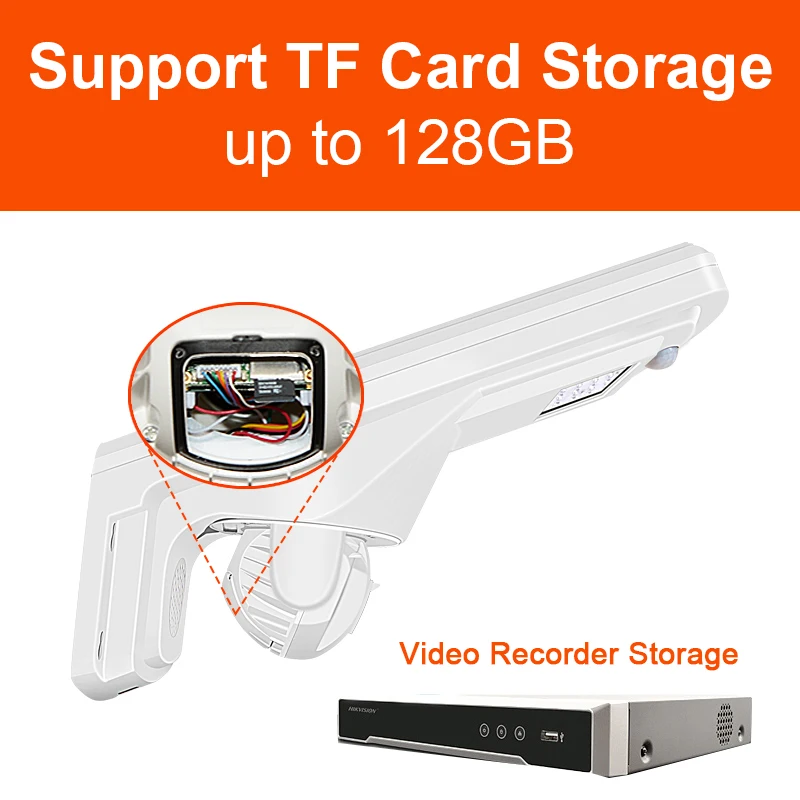

The SD Card Slot Is Designed On The Camera's Back Cover,Very Easy to Install the TF/Micro SD Card .

 Note:If need zoom function, please choose 5x optical zoom lens(2.7-13.5mm); if not need zoom function, can choose the fixed 6mm lens.


Specifications:

ModelSNO-Q40A-20FSNO-Q40A-20V

CameraOperating systemEmbedded Linux OS

Processor SensorHI3516E+1/2.9" SONY307

Megapixel1920*1080

Lens interface typeM12

Lens6mm Fixed Lens2.7-13.5mm

5x Optical Zoom Lens

View angle58°89.9°-26.2°

Min.illumination0.05 Lux  / 0 Lux(IR on)

Day&Night modeAuto IR-CUT

Night vision distance4pcs Array Infrared LEDs or 2pcs White Supplement LEDs. 60M Night Vision

VideoVideo compression

standardH.265/H.264 Main Profile/H.264 Baseline

Video streamingDual streaming

Video resolutionFirst stream: 1080P(1920x1080), 720P(1280x720)

Second stream: Q720P(640x480/640x352),

QQ720P(320x240/320x176)

JPEG stream :(Monitoring for mobile phones),

Q720P(640x352), QQ720P(320x176)

Video code rate32 to 8192Kbps. supports constant bitrate/variable bitrate

Video frame rate20fps(PAL 50HZ). 20fps(NTSC 60HZ)

Image settingsBrightness,saturation,contrast,Sharpness,Exposure,flip,mirror

Image enhancementBacklight compensation,Automatic white balance,

Digital WDR, 3D digital noise reduction

AudioAudio compression standardG.726/G.711

Audio code rateRate adaptive

Audio InputSupport, Built-in Microphone

Audio OutputSupport Two Way Audio Talk ,  Built-in Loud Speaker

FunctionMotion detectingCan set 4 independent detection region (1-100 sensitivity can be set)

Alarm linkageAlarm send pictures to the specified mailbox,

alarm upload pictures and videos to the FTP server,

alarm write pictures and videos to Micro SD card,

alarm message push

Privacy maskMaximum support 4 users to simultaneously browse

OSDSupport camera name, date and time information superimposed

User managementSupports user and rights management

Simultaneous viewersmaximum support 12 users to simultaneously browse

(each stream supports 4 users)

Network protocolTCP/IP,HTTP,TCP,ICMP,UDP,ARP,IGMP,SMTP,FTP,

DHCP,DNS,DDNS,NTP,UPNP,RTSP etc.

Connection protocolN/A

wifiWireless standardsIEEE802.11b. 802.11g. 802.11n Draft

Frequency range2.4 GHz  to  2.4835 GHz

Wireless Security64/128-bit WEP. WPA/WPA2. WPA-PSK/WPA2-PSK. WPS

Transmission rate11b: 11Mbps,11g :54Mbps,11n :135Mbps

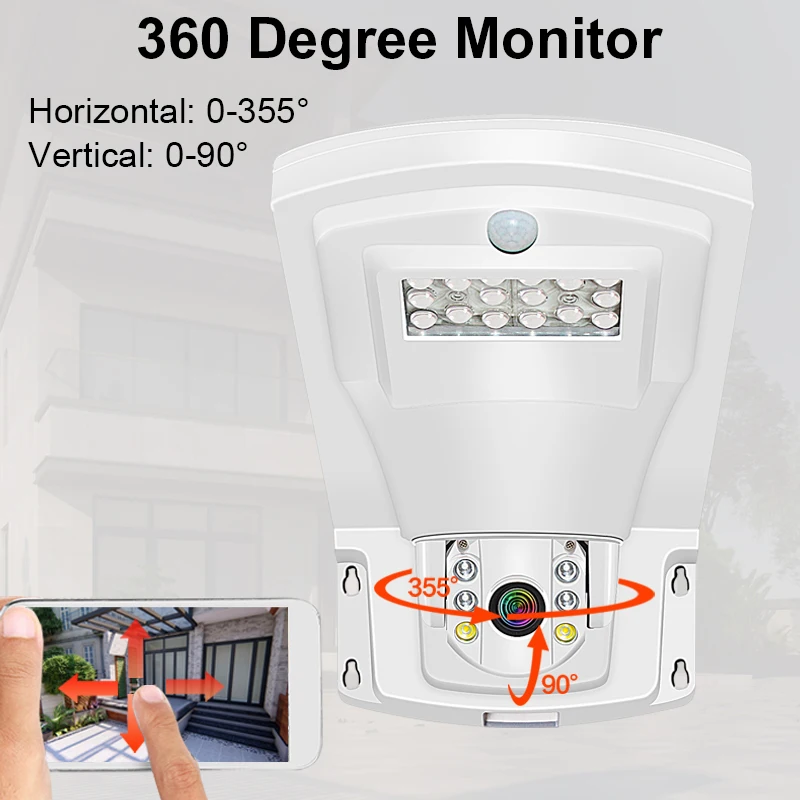

PTZRotation angleHorizon:0° to 355°. Vertical: 0° to 90°

Horizontal speed1° to 20°/S

Vertical speed1° to 20°/S

PresetN/A

InterfacePower interface1*5.5mm power interface

EthernetN/A

TF card Slot1*TF card slot. up to 64G(Don't included TF Card)

Reset buttonSupport

General

SpecificationPower supplyDC 12V 2A

powerDay: 3W;  Night: 12W

Operating temperature-20 to +60 degree

Operating humidity10% to 95%

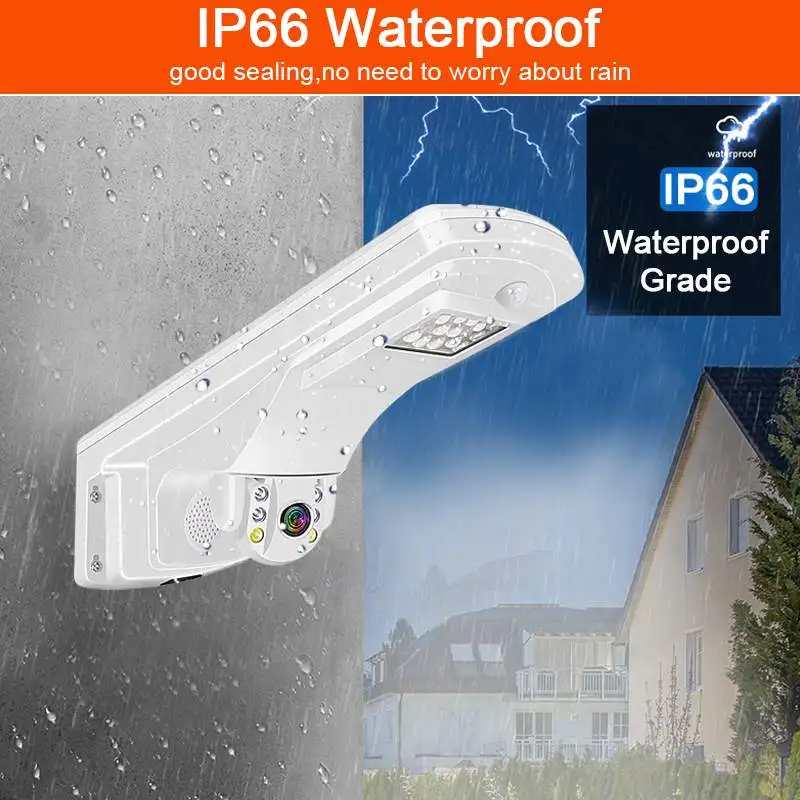

MaterialABS Plastic + Metal Housing ,Outdoor Use,Waterproof IP66

InstallationRack mounting

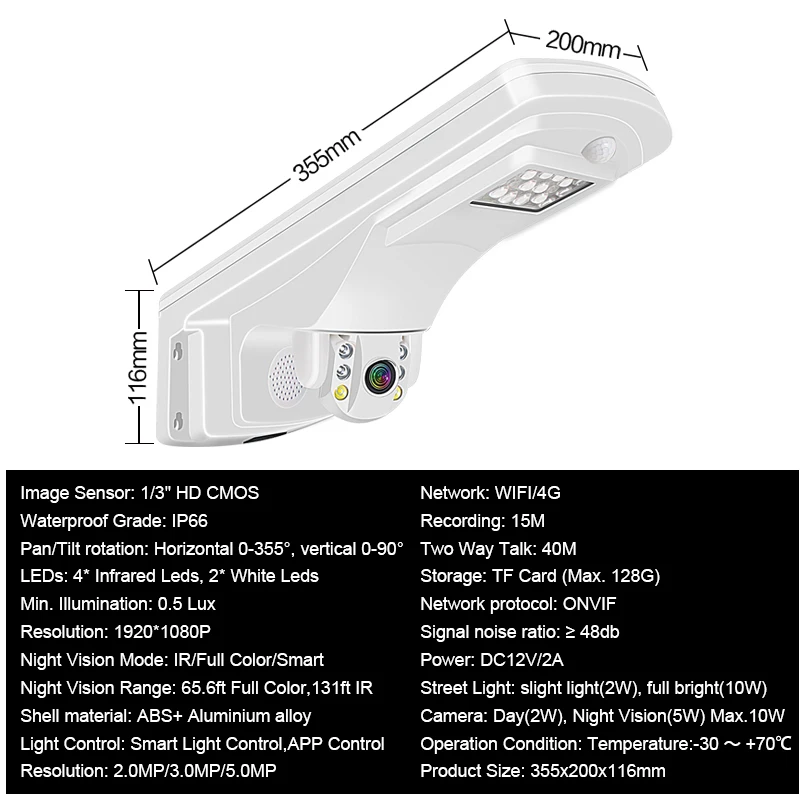

Size(W×D×H)(mm)332x204x277mm

Weight(kg)2kg

Package Size(W×D×H)(mm)450X260X172MM

Package Weight(kg)2.5kg
