10.1inch Integrated Screen Machine 8CH Wireless NVR Security Outdoor Camera WIFI System Kit Monitoring CCTV Audio Video Recorder
- Model:SNO-626HF10- XMW(PD-8)
- Brand:SNO
- Weight:6.0kg
10.1inch Integrated Screen Machine 8CH Wireless NVR Security Outdoor Camera WIFI System Kit Monitoring CCTV Audio Video Recorder
NVR | |
Video Input | 8 Channel |
NVR Effective Pixels | 3MP, 2304(H)×1296(V) |
Screen | 10.1 inch LCD monitor, 1280×800 |
Video Compression | H.265+ |
Recording Mode | Manual, Alarm, Dynamic detection, Timing |
Backup | Network, USB |
Audio Compression | G.711A |
Audio | Built-in Speaker |
Face Detection | Support(depend on camera) |
Human Detection | Support(depend on camera) |
HDD | 1 SATA Port for 2.5” HDD, up to 4TB, and support micro SD card up to 256GB |
Network Interface | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
Wi-Fi Interface | WiFi 802.11b/g/n |
USB | 2 ports, USB 2.0 |
Power Supply | DC12V/1A |
Power Consumption | <10W (without HDD) |
Dimension | 252*162*22.5mm |
Camera | |
Image Sensor | 1/3” 3.0 MP Progressive Scan CMOS |
Camera Effective Pixels | 3MP, 2560(H)×1440(V) |
Min. illumination | Color: 0.1 Lux, B/W: 0.01 Lux |
IR Range | Up to 20 m (65.6 ft) |
Focal Length | 3.6 mm |
Motion Detection | Support |
Human Detection | Support |
WiFi | WiFi 802.11b/g/n, 2.4G |
Power Supply | DC12V/1A, Max 6W |
Waterproof grade | IP66 |
10.1inch Integrated Screen Machine 8CH Wireless NVR Security Outdoor Camera WIFI System Kit Monitoring CCTV Audio Video Recorder
Wireless security system features overview
Feature list of an 8-channel wireless security camera system: 3MP HD, WiFi wireless, motion detection, IP66 weatherproof, video playback, remote viewing, email alerts, easy setup, and day/night vision.

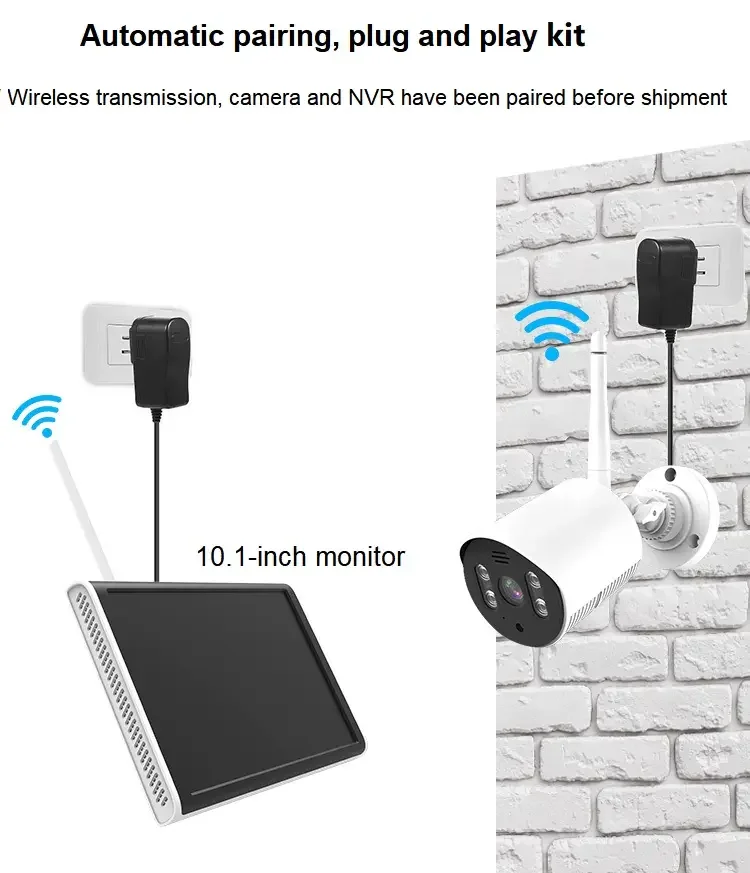

Automatic Pairing ,Plug and Play kit.
Wireless Transmission ,camera and NVR have been paired before shipment

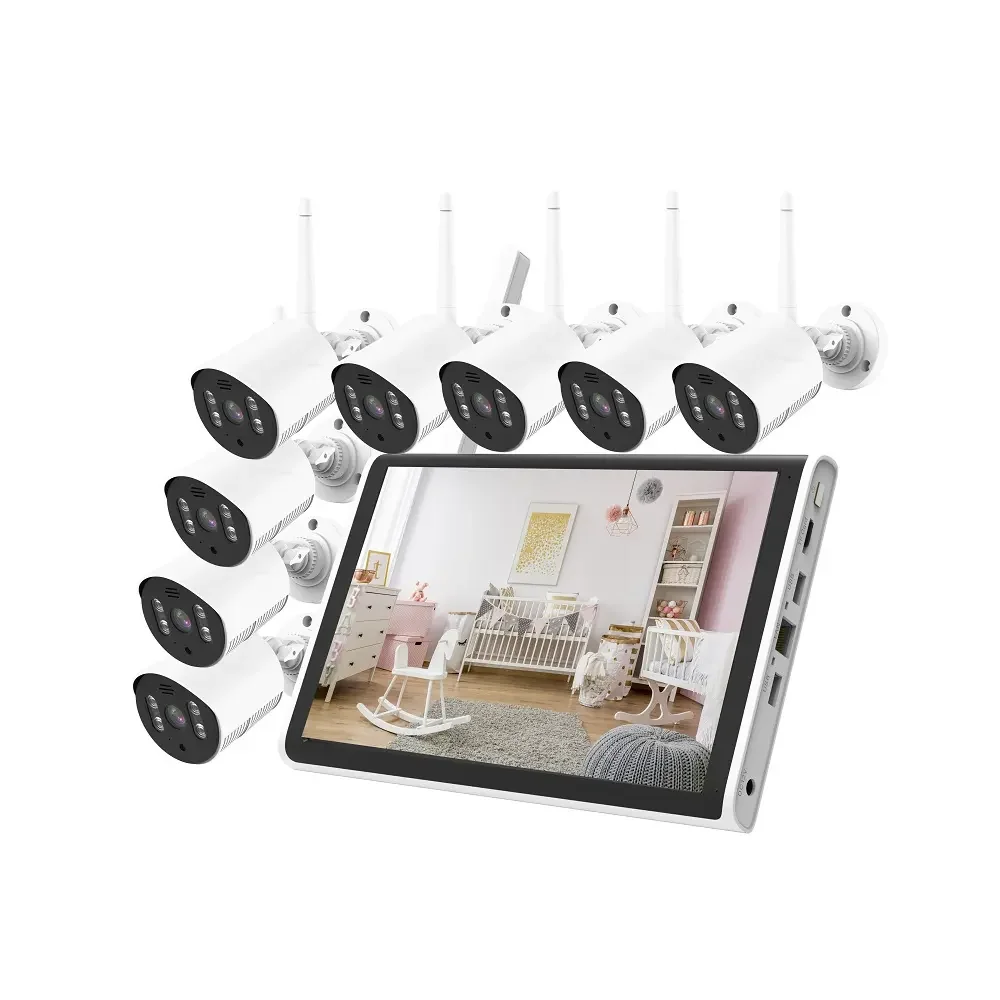

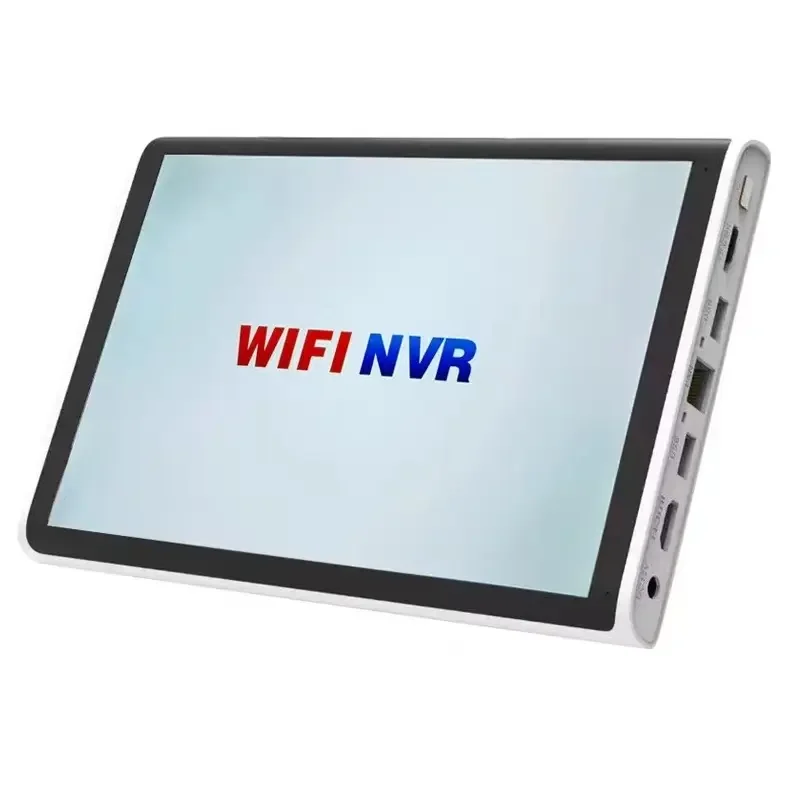

Full HD 10.1inch Screen NVR Monitor Xmeye APP wireless NVR system

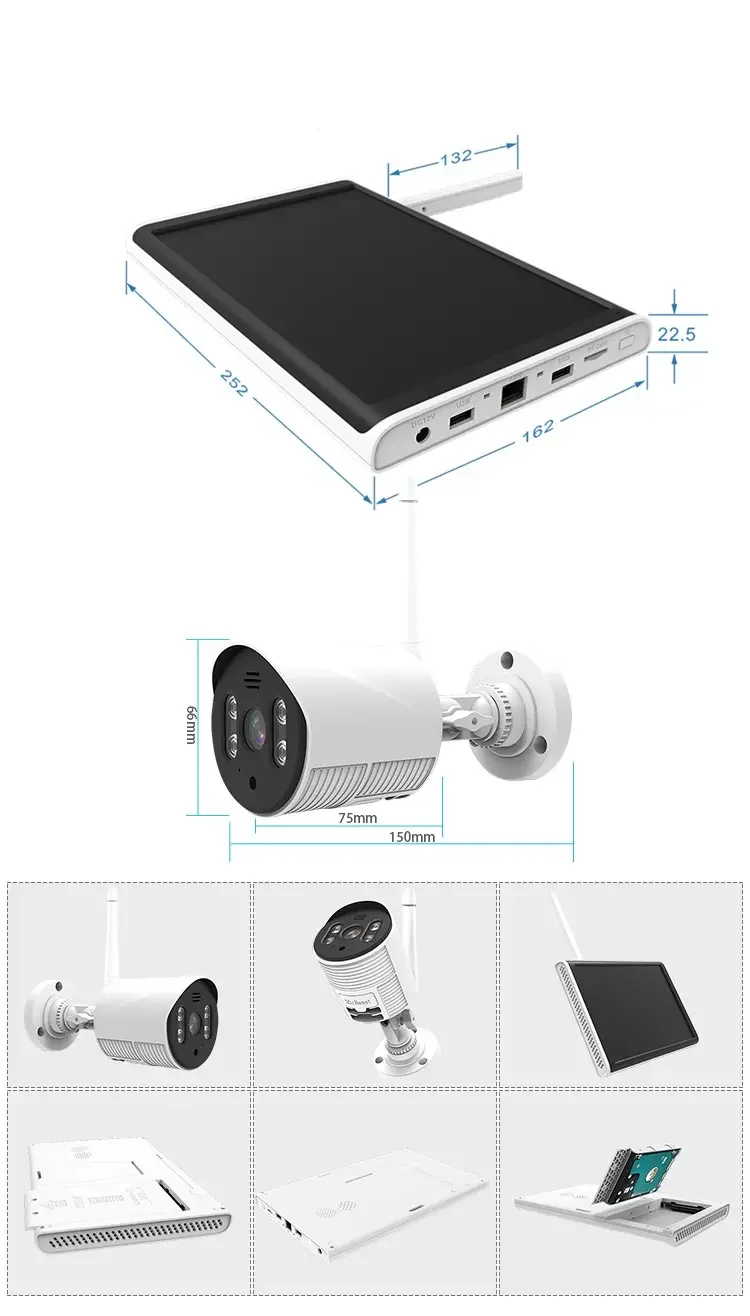

Product size display
NVR main unit and security camera with detailed dimensions.

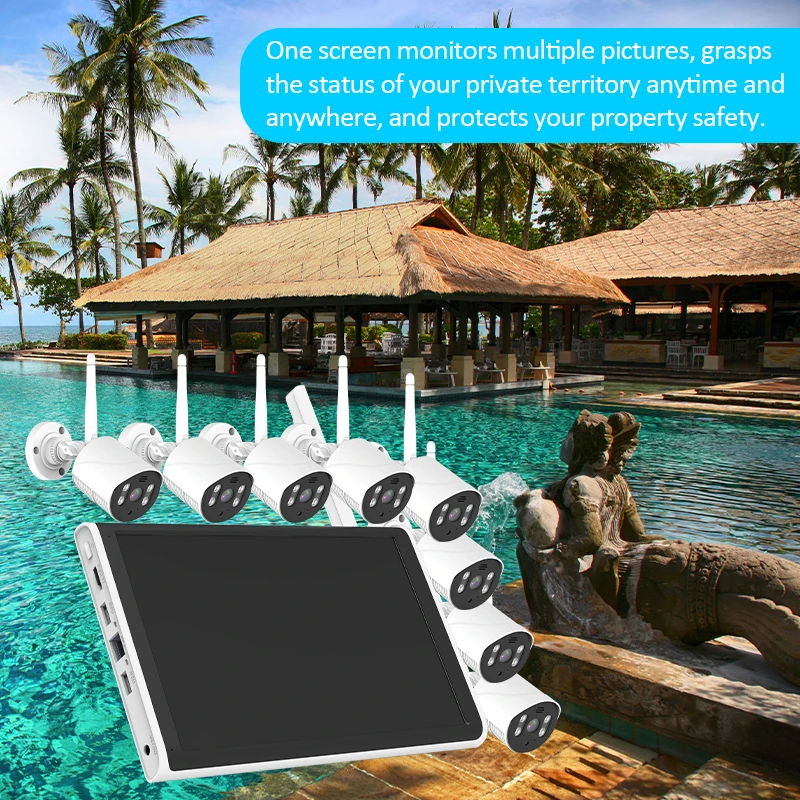

Villa pool monitoring demo
Multiple wireless cameras with NVR screen monitoring in a villa pool scene.
3.0MP HD monitoring effect
Full 3.0MP cameras capturing clear details for homes and yards.
H.265+ smart video compression
Chipset diagram showing efficient storage and bandwidth saving technology.

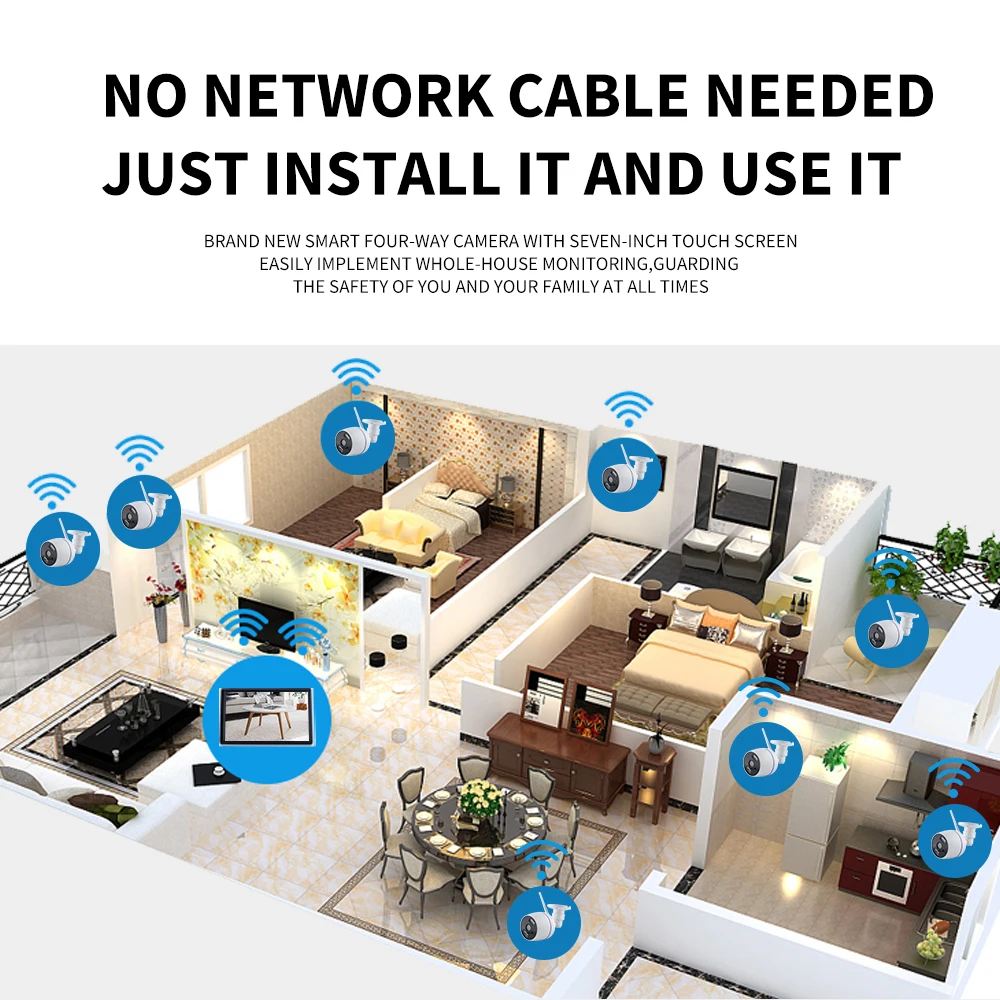

Wireless coverage demo
Indoor setup with multiple cameras for whole-house monitoring without cables.
NVR hard drive installation
Open HDD slot showing hard disk installation inside the NVR.

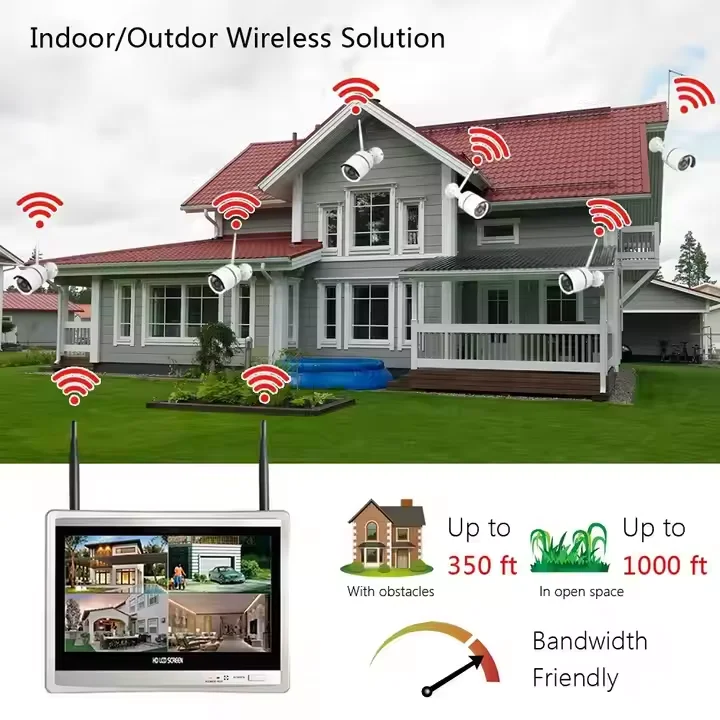

Outdoor wireless transmission demo
Cameras installed around a villa showing long-distance wireless signal coverage.

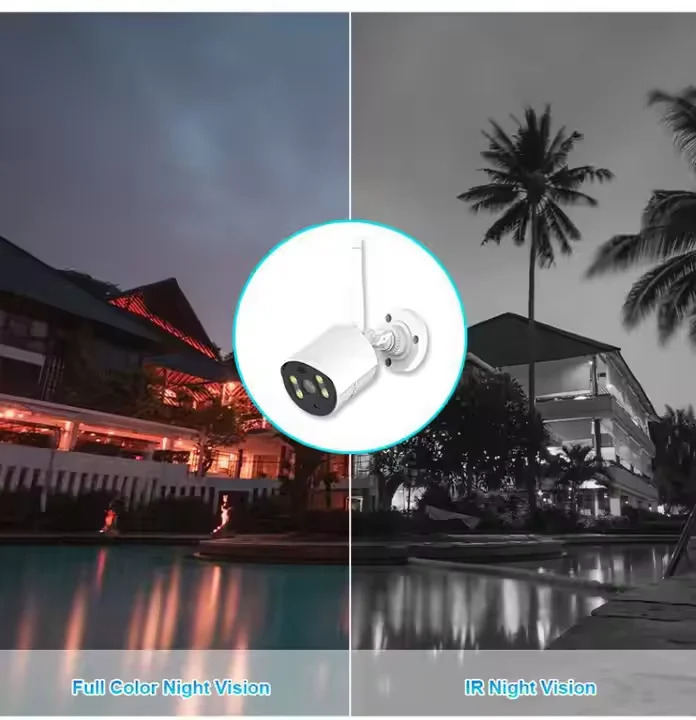

Full-color vs IR night vision
Comparison between color night vision and infrared night vision.

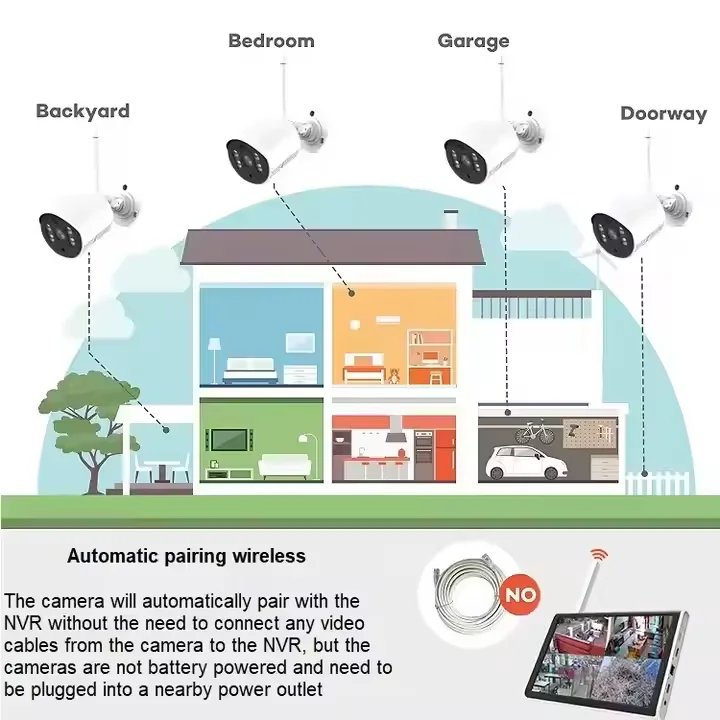

Home monitoring layout
Cameras covering backyard, bedroom, garage, and doorway.
