8-Channel CCTV IP Cameras 4K 8MP POE NVR 12-Inch Screen LCD HD Display Monitor HDD Storage Video Recorder
- Model:SNO-NP08S-POE
- Brand:SNO
- Weight:2.0KG
8-Channel CCTV IP Cameras 4K 8MP POE NVR 12-Inch Screen LCD HD Display Monitor HDD Storage Video Recorder
Main Features
Support access of multiple Camhipro smart front-end devices with human detection and face detection function.
Requires external POE expansion board power supply and network connection.
Support HDMI 4K, VGA 1080P HD Output.
Support ONVIF; Access third party;
Support web, hip2p, center platform management software camhipro, provide SDK development;
Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;
Support multiple network services (support DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP searches, Alarm Center, etc.);
Support GB28181 protocol access to third-party platforms.
Product Specification
NVR System | ||||
Type | 10 CH NVR with 8 POE Ports & Integrated Monitor | |||
Compression Method | H.265 AI /H.265/ H.264 | |||
Operating System | Embedded LINUX | |||
HDD | 1SATA, MAX 14TB Each | |||
Network Protocol | RTSP、ACP、ONVIF、P2P、UPnP、NTP、DHCP、PPPoE | |||
Intelligent Function | Working with Same Series IPC: Human Detection,Face Detection,Vehicle Detection etc | |||
Incoming bandwidth | 72Mbps | |||
Display & Recording | ||||
Video Preview | 10CH*8MP@30fps and below | |||
Preview Split | 1/2/4/6/8/9/10 Screen | |||
Recording Mode | Manual/fixed time/alarm recording | |||
Playback | 1 x 4K@30, 2 x 4MP@25, 4 x 2MP@25,8 x 720P@25,9 x D1@25 | |||
Video | Alarm | Audio | ||||
Video Input | 10ch Max 8MP Cameras | |||
Video Output | 1x HDMI(3840×2160),1x VGA(1920×1080) | |||
Audio IN/OUT | 10 (IPC IN):1(RCA) | |||
Alarm IN/OUT | N/A | |||
Motion Detection | Yes | |||
Trigger Events | Recording, Email, Screen Tips, Buzzer, App push | |||
External Ports | ||||
Network Port | 1 pcs RJ45 100M/1000M Ports | |||
POE Port | 8CH, 10/100Mbps, IEEE802.3at/at | |||
Others | USB x2, HDMI, VGA, Audio Out | |||
General | ||||
Integrated Monitor | 11.6″ TFT HD Screen | |||
Display Resolution | 1336*768 | |||
Power | DC52V | |||
Power Consumption | ≤10W（without HDD） | |||
Working Temperature | -10°C ~ 55°C/10﹪-90﹪ | |||
Inner Package Size | 31.5*25.5*14.5CM / 1.85KG | |||
All in one 8CH 8MP PoE NVR
Max 10CH 4K / 8MP PoE IP Camera input
Video Compression H.265+
10.1 inch LCD Display
Human Shape Detection & Face Detection
Support ONVIF protocol
Super HD 8MP High Resolution
With a high resolution of 8megapixels(3840×2160), capture videos in 3840P HD quality.
It is a huge advancement compared to 1080P Full HD or Super HD 5MP.
You never miss any important details. which enables you to see all objects very clearly.
H.265(HEVC) doubles the coding efficiency compared with its predecessor H.264.
Advanced H.265 compression technology lets you save on storage space which allows for longer recording times. H.265 technology compressing
your video without sacrificing any of the Ultra HD video quality.
This security system features Power Over Ethernet (PoE) technology, a single network cable run between this POE NVR and each PoE IP Camera provide both power, video and audio transmission, allowing you to position your cameras anywhere without a nearby power outlet.
PoE NVR supports to connect to IOS, Android, Windows, and web browser. You can easily realize free connection with the camera in any of these four ways.

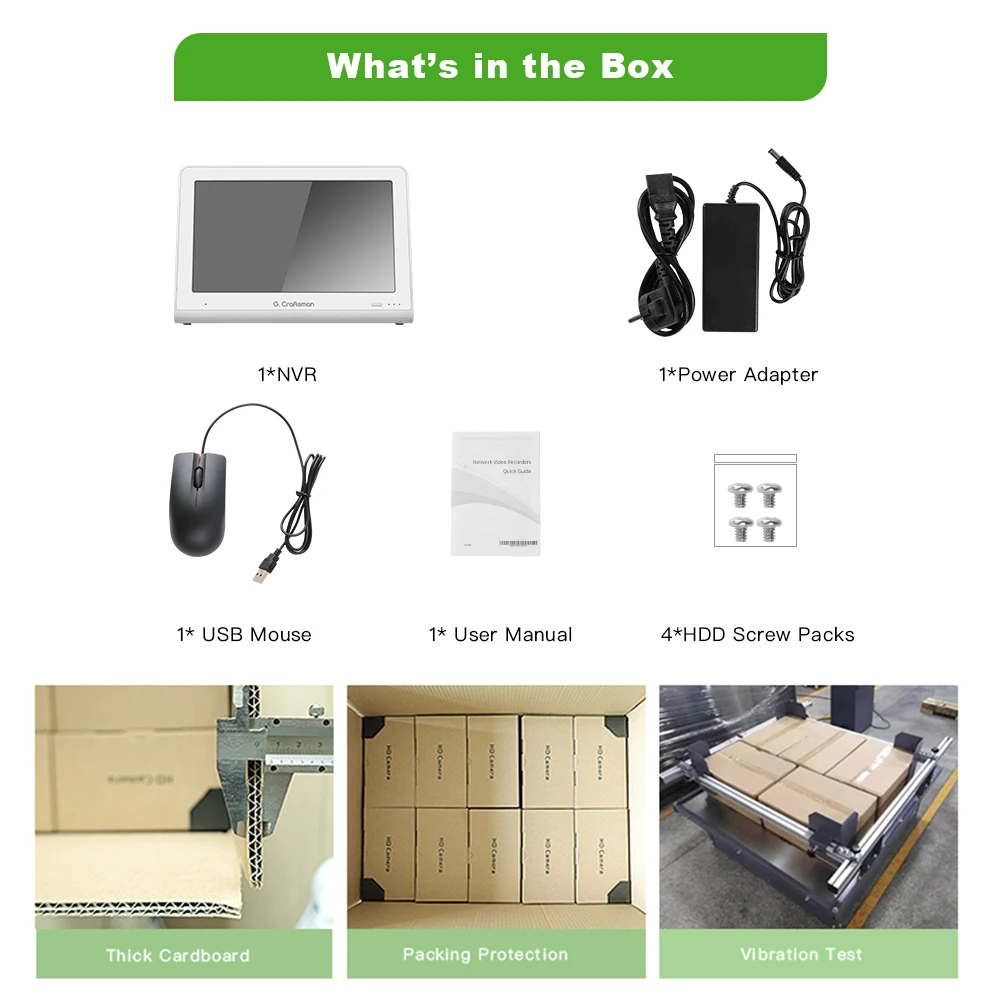

What is Included
NVR *1
Power Adapter*1
Mouse *1
User Manual *1
