Smart Smoke Detector 4G WiFi POE Camera 3G Sim Card Home Panoramic 4MP HD For Parlor Room Kitchen Shop Fire Inspection Alarm Sensor iCsee
Smart Smoke Detector 4G WiFi POE Camera 3G Sim Card Home Panoramic 4MP HD For Parlor Room Kitchen Shop Fire Inspection Alarm Sensor iCsee -
Smart Smoke Detector 4G WiFi POE Camera 3G Sim Card Home Panoramic 4MP HD For Parlor Room Kitchen Shop Fire Inspection Alarm Sensor iCsee
- Model:SNO-SA9-40
- Brand:SNO
- Weight:0.5KG
Smart Smoke Detector 4G WiFi POE Camera 3G Sim Card Home Panoramic 4MP HD For Parlor Room Kitchen Shop Fire Inspection Alarm Sensor iCsee
Product overview：

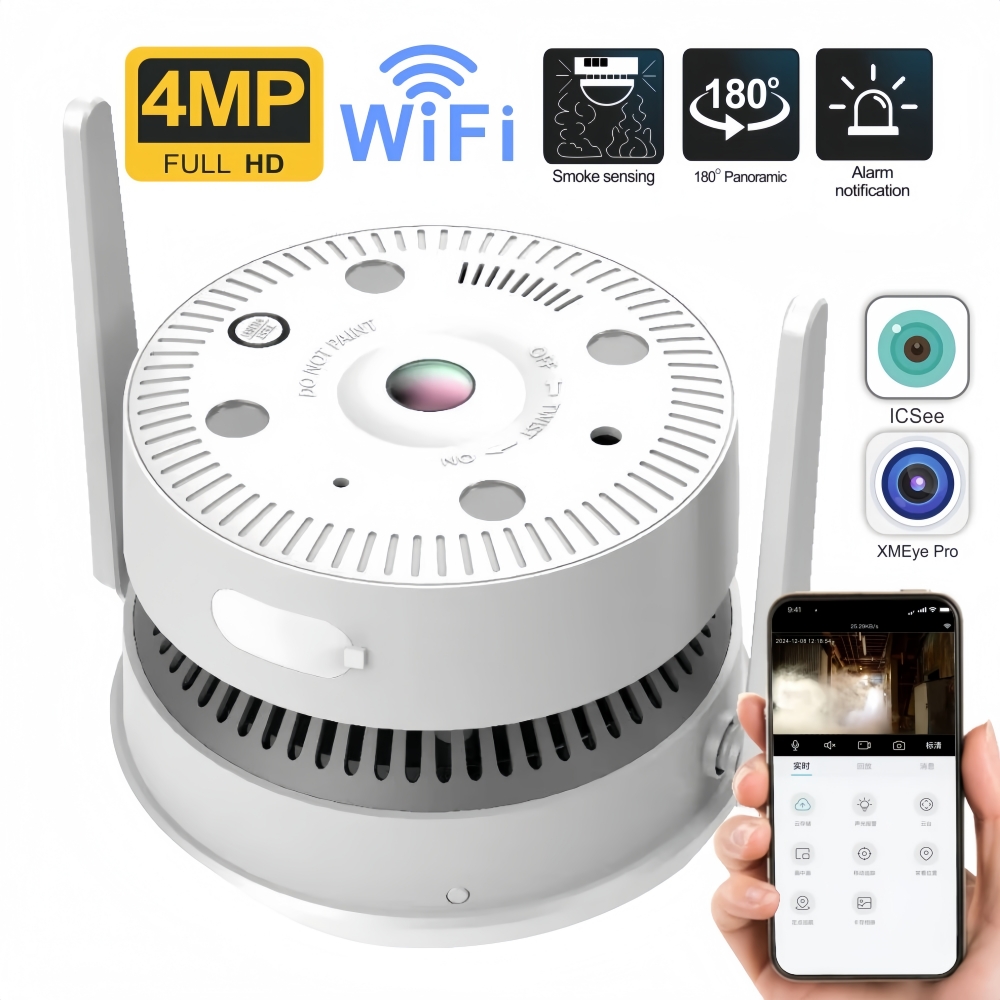

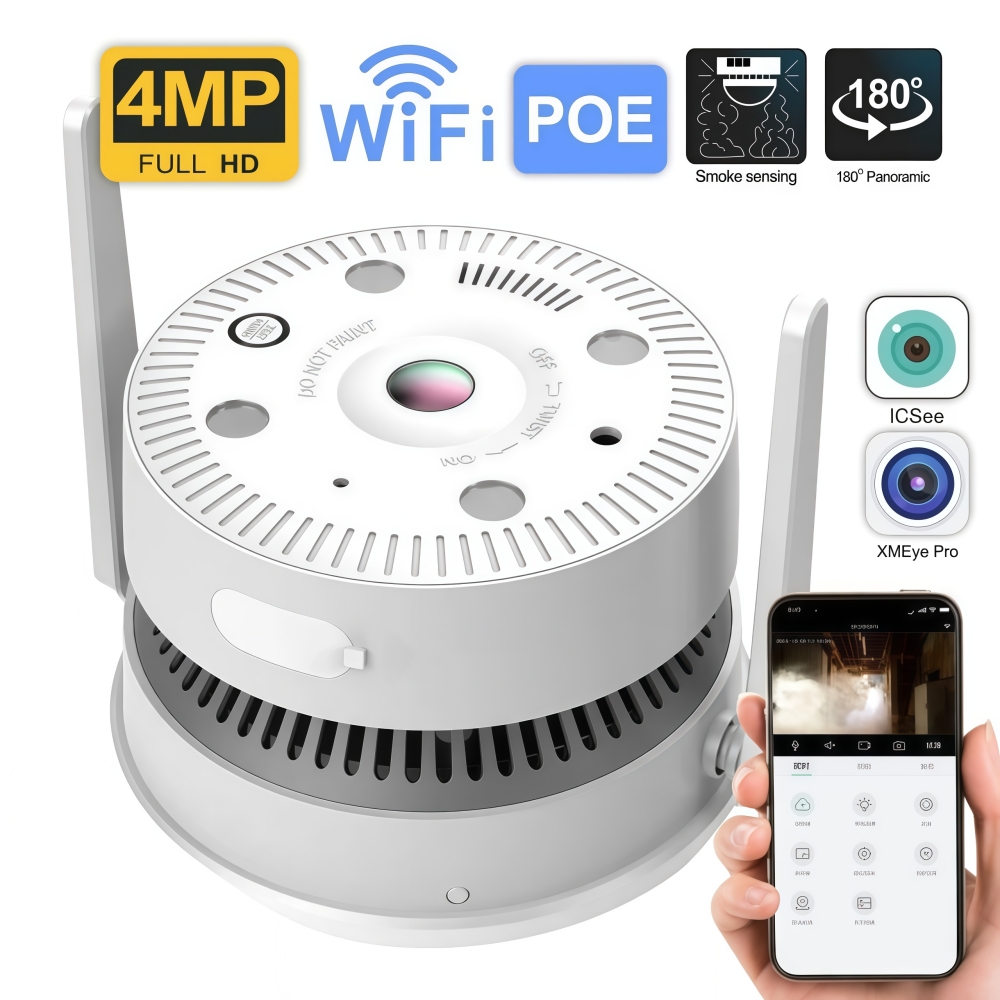

SNO-SA9-40 is a 4.0mp ultra clear black light AI intelligent smoke detection network camera developed by SNOSECURE,there have WiFi/4G/POE different version optional . 2K images, low noise, double light full color, support humanoid detection, face detection, car shape detection, support H.265AI coding, mainly used in indoor smoke detection + night vision ultra clear video surveillance cameras.
SNO-SA9-40 is a smoke triggered push network camera with an indoor area of about 20㎡/ 2.5-3m high, suitable for indoor logistics warehouses, stores, underground parking lots, bars, and other common places fire + video surveillance two-in-one places.
Function description: Smoke detection, sound and light alarm signal
Technical parameters
1. Power supply: CR123A 3V lithium manganese battery
2. Supply voltage range: DC2.4-DC3.0V
3. Rated voltage: DC 3.0V
4. Implementation standard: EN14604-2005
5. Standby working current: < 10uA
6. Alarm working current: < 45mA
7. Low pressure threshold: 2.5V
8. Alarm indication: sound and light indication
9. Silence duration: 9 minutes
10. Sound pressure: >85dB/3m
11.433 Wireless function: EV1527 protocol, emit 433MHz RF signal when smoke alarm occurs
12. When the smoke alarm occurs, the alarm signal is pushed in the camera APP at the same time
Pixel: | 4MP 2K HD color image |

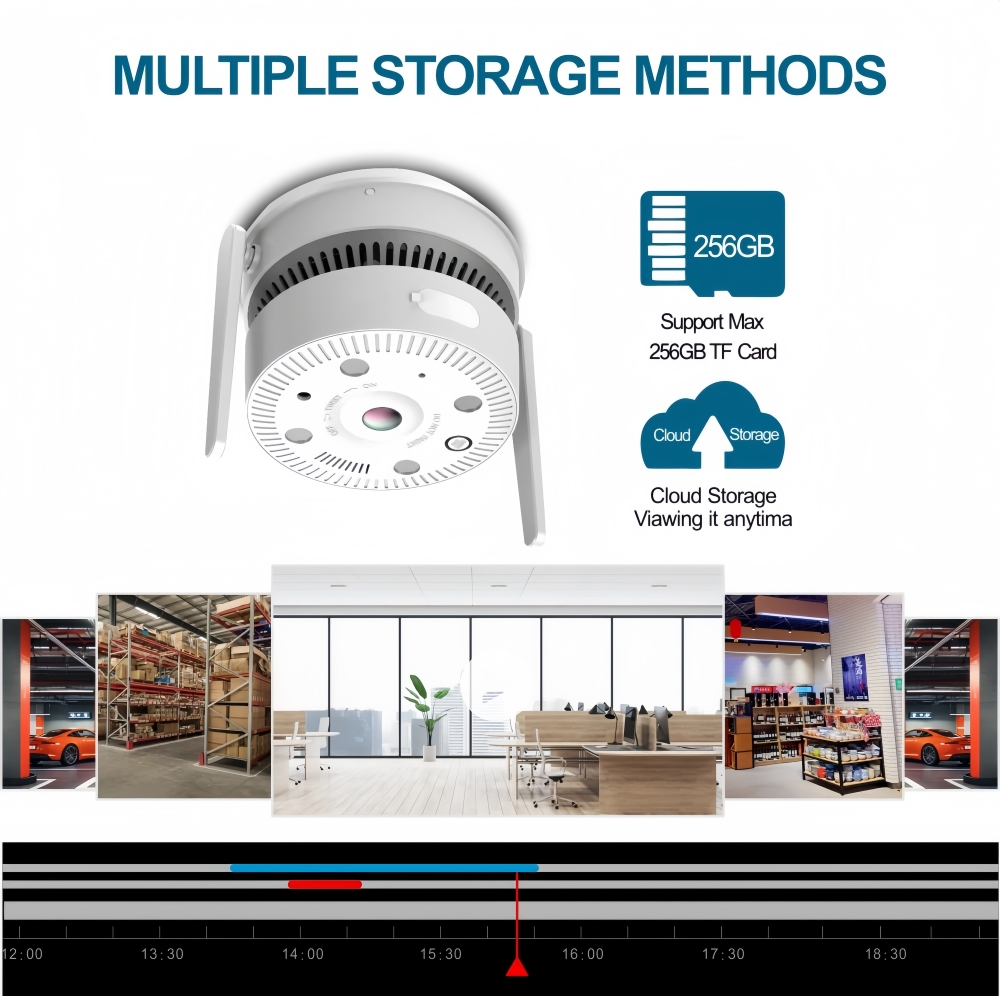

Video Recording | can record to memory card or cloud storage |
Codec: | H.265 AI (compatible with H.265/H.264)code,DualStream,AVI |
Resolution ratio: | 2560*1440@25fps; 2304*1296@25fps; 1920*1080@25fps;800*448@25fps; |
Shutter: | 1/50(1/60)s-1/10000s |

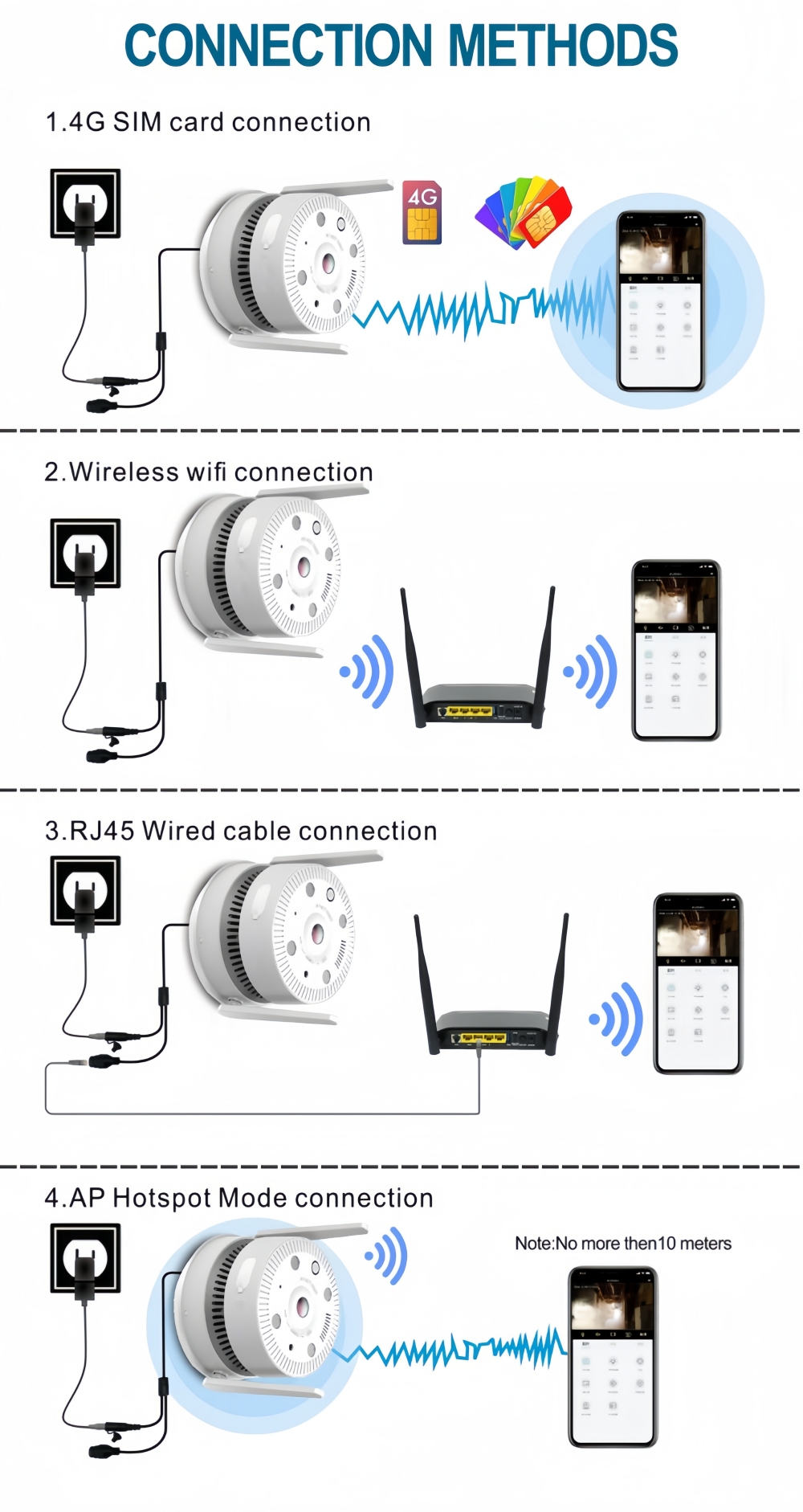

Interface: | Support for Micro SD card ; 4G SIM card (Option for 4G version) |
Image noise reduction: | Support for 2D / 3D noise reduction |
Wide Dynamic Range: | Support for Digital-width dynamics |
Audio: | Support for Two-way voice call, Supports Synced Audio and Video |

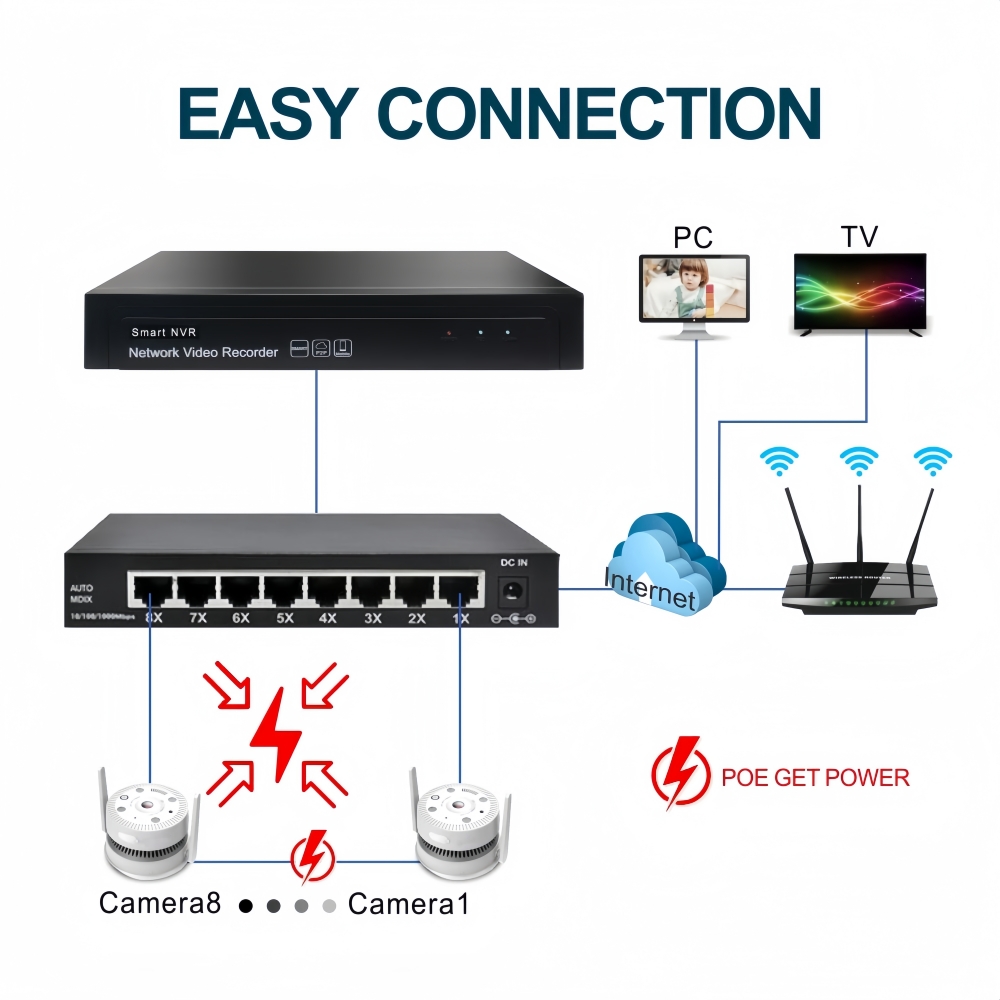

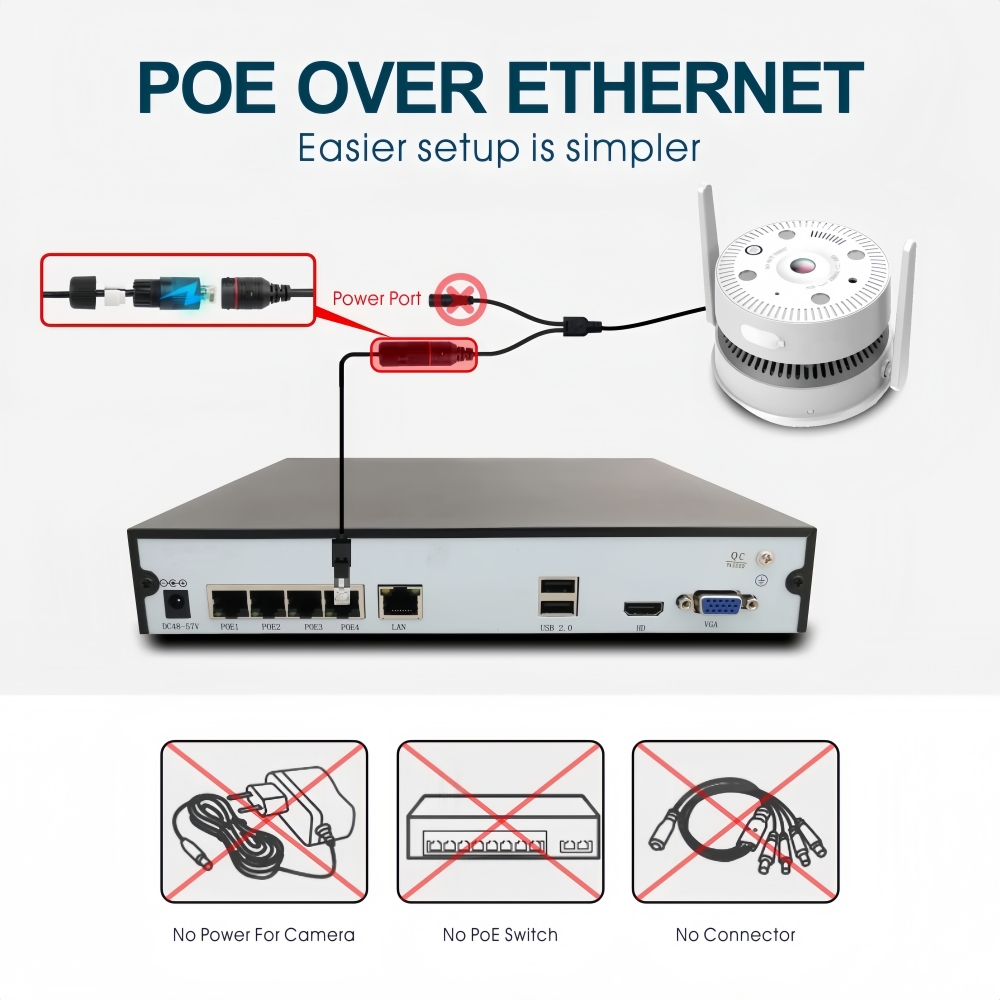

Network interface: | 1*RJ45 network interface,10/10oM Adaptive ; Support for RTSP/FTP/DHCP/NTP/UPnP (Merge with the power supply interface) |
Lens: | 180°Panoramic |
Antenna: | Dual external antennas |
Reset key: | Supports |
Alarm | smoke push alert to phone through free phone App. |
Application | xmeye or xmeye pro or icsee (supports Android phone or iPhone) |
4G - Enabled Monitoring Device with H.265 HD Video Coding for Network - Free Use
Equipped with H.265 high - efficiency video coding, this device uses 4G transmission, enabling use even without an installed network.

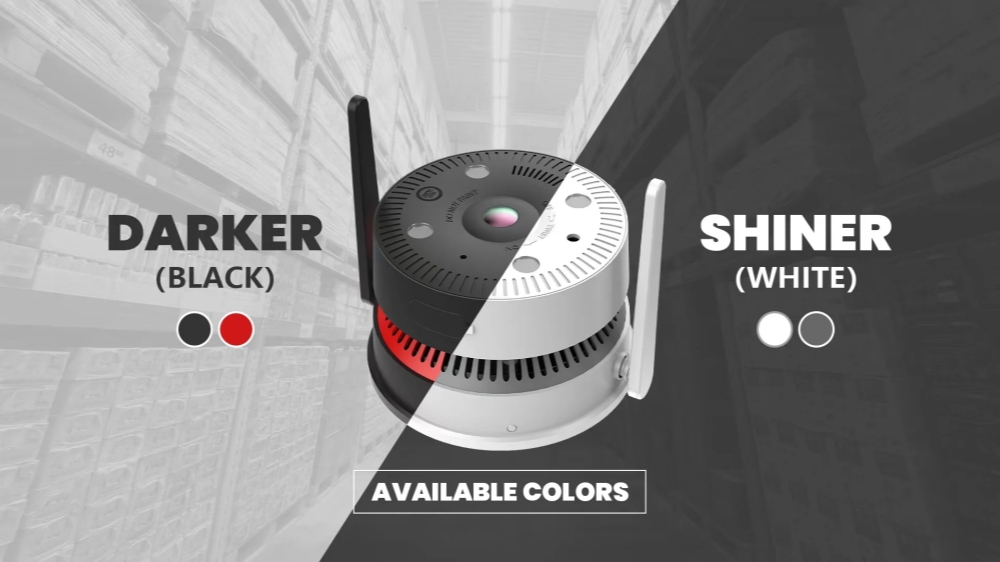

Stylish Design & Color Options
Available in two colors - a darker (black) and a shiner (white) version. So, it can blend in with different decors, whether it's a modern home or an industrial warehouse.

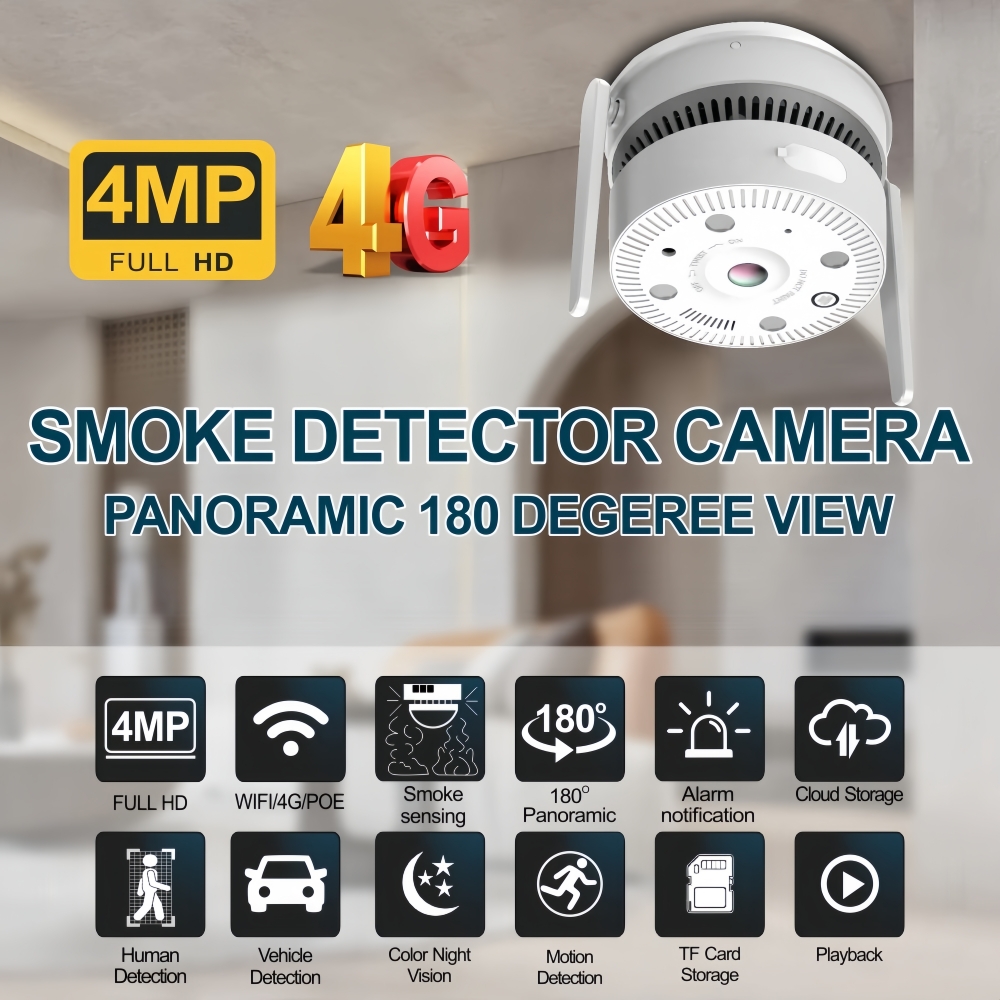

4MP HD Resolution & 180°/360° Wide - Angle View
This camera is a game - changer in surveillance. Boasting 4MP real physical pixels, it delivers ultra - clear images. Whether it's a library, your home, or a large warehouse, the 180° wide - angle lens (and even 360 - degree full view for comprehensive coverage in some setups) ensures no corner is left unseen.
Integrated Smoke Detection & Alarm System
This isn't just a camera; it's a safety hub. The built - in high - precision fire smoke detector can sense smoke accurately. Once smoke is detected, it triggers an automatic emergency alert. You'll receive instant push notifications on your phone, ensuring you're aware of potential fire hazards in real - time, whether it's in a warehouse or a hotel.
Intelligent Motion & Human Detection
The camera features intelligent motion detection. When it spots movement (like an unauthorized intruder in your home), it sends “Motion Detection” alerts to your phone via the “iCsee” app instantly. The visual shows how it catches a suspect in action, keeping your property safe.
Smart Dual - Light Night Vision
Equipped with smart dual - light night vision tech, it enables full - color, clear footage even in low - light or darkness for 24/7 surveillance.

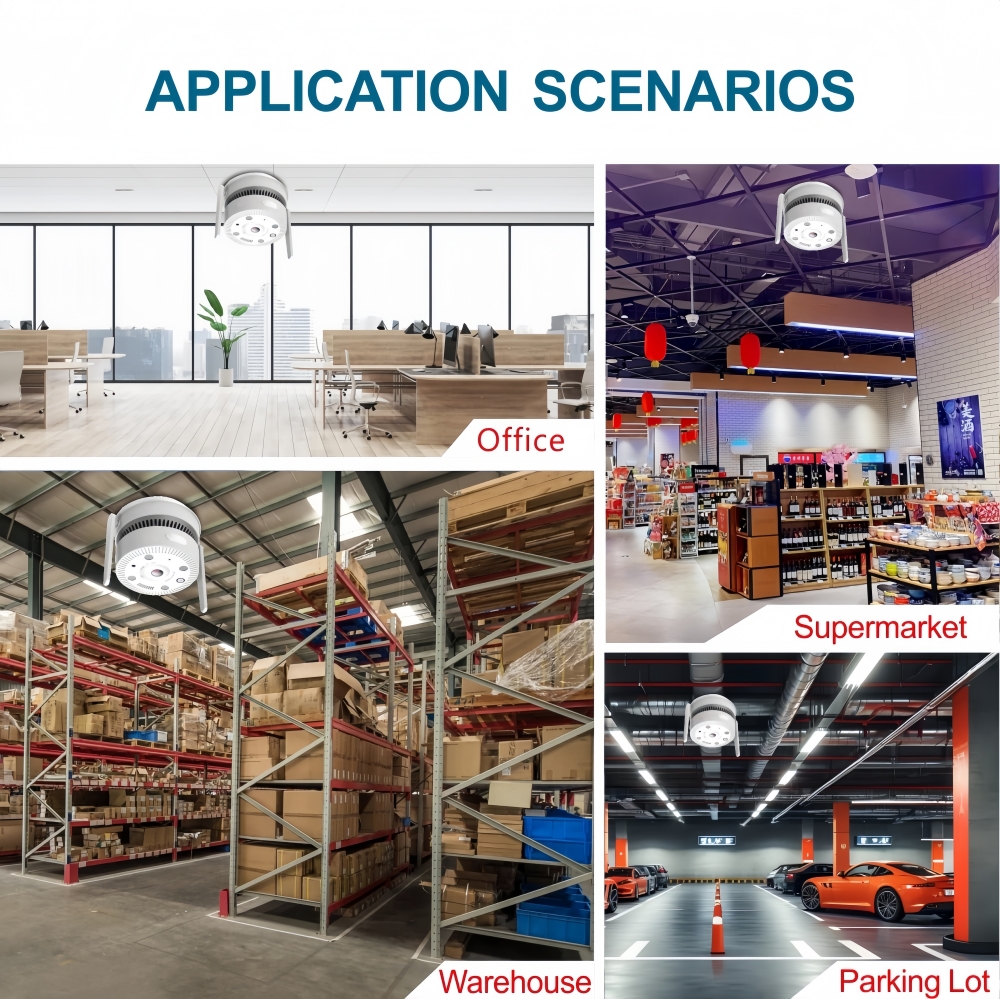

Wide - Ranging Application Scenarios
Ideal for warehouses, homes, hotels, and more. In a warehouse, it provides 360 - degree full view and promptly warns of fire situations. In a home, it safeguards your family, and in a hotel, it ensures the safety of guests and property.
FAQ
Q：How to perform alarm calibration?
A：Short circuit the BD port on the PCB board and press and hold the button to power on.
Q：What's normal standby mode?
A：After successful calibration, the product enters normal standby mode when powered on.
Q：When does the alarm state activate?
A：It activates when the smoke concentration value reaches the alarm threshold.
Q：What triggers the low voltage state?
When battery voltage is below the threshold and smoke is normal.
Q：How to enter test state?
A：Press and hold the test button during standby, with sound and light indicators.
Q：When does fault status occur?
A：When there is a maze fault, a fault indication appears.
Q：How to mute an alarm?
When an alarm occurs, short press the button to mute for 9 minutes.
Q： What materials is the product made of?
A：It's made with fire - resistant, high - temperature durable materials for stable performance in high - heat environments.
