SNO 5.0MP Solar Power 3g 4g radar detection PTZ IP Camera SNO-B6D-4G-50
- Model:SNO-B6D-4G-50
- Brand:SNO
- Weight:2.0kg
SNO 5.0MP Solar Power 3g 4g radar detection PTZ IP Camera
Key Specifications/Special Features:
What are the Main Features?
* ALL 3G 4G available ,FDD-LTE, TDD-LTE, WCDMA/HSPA+, TD-SCDMA, GSM/GPRS/EDGE
* Professional senior Industrial level Main Board
* 2.7-13.5MM 5.0 Mega pixels Varifocal Lens ,5X Optical zoom
* H.265&H.264 Compression,dual stream(5.0M), three stream(2.0MP)
* 4PCS IR LED, 2PCS white LED,IR distance: 60M
* Built-in Micro SD card slot, Max 128G
* Support mobile phone remote view, compatible with many smartphone operating platform
* Support alarm pictures to send E-mail,upload to FTP server
* Support timer captured picture uploaded to Micro SD card and FTP server
* Built-in webserver to facilitate the user to use the standard IE browser to achieve the front end of the real-time browsing and setting management
*Support multi-screen viewing, playback, recording and alarming on PC.
What are the Applications?
The Solar Power WiFi IP Camera Kit are widely used in Construction Site, Farm, Park, Highway, Work Shop, Oil Field
Camera Model | SNO-B6D-4G-50 | |
Video | Sensor | 5.0 megapixel 1/2.8" SONY 335 |
Video resolution | Main stream: 2592x1944@15fps, 1920x1080@25fps Sub stream: 640x352@25fps, 1280x720@25fps | |
Video compression | H.265&H.264 | |
Lens | 2.7-13.5mm 5X optical zoom auto focus lens | |
View angle | 96degress~26.2degress | |
Night vision | 4PCS IR LED, 2PCS white LED,IR distance: 60M | |
Audio | Audio compression | G.726/G.711 |
Audio code rate | Rate adaptive | |
Audio input | Support, can connect the pickup and MIC | |
Audio output | Support, can connect speakers | |
Alarm | Motion detecting alarm | Can set 4 independent detection region (1-100 sensitivity can be set) |
Alarm linkage | Alarmsend pictures to the mailbox, Alarm upload pictures and videos to the FTP server, Alarm record pictures and videos to Micro SD card, Alarm mobile phone message push | |
Alarm recording | Support Micro SD card and PC client linkage alarm recording | |
4G | 4G standard | FDD-LTE/TDD-LTE |
4G frequency range | B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz), B20(800MHz), B38(2600MHz), B40(2300MHz), B41(2500MHz) | |
Interface type | Micro SIM card, Plug and play, no need to set | |
Storage | Micro SD card | Support up to 128G micro SD card |
Recording mode | Alarm record, timing record, | |
Video playback | Support APP, IE browser, remote client play and download the video | |

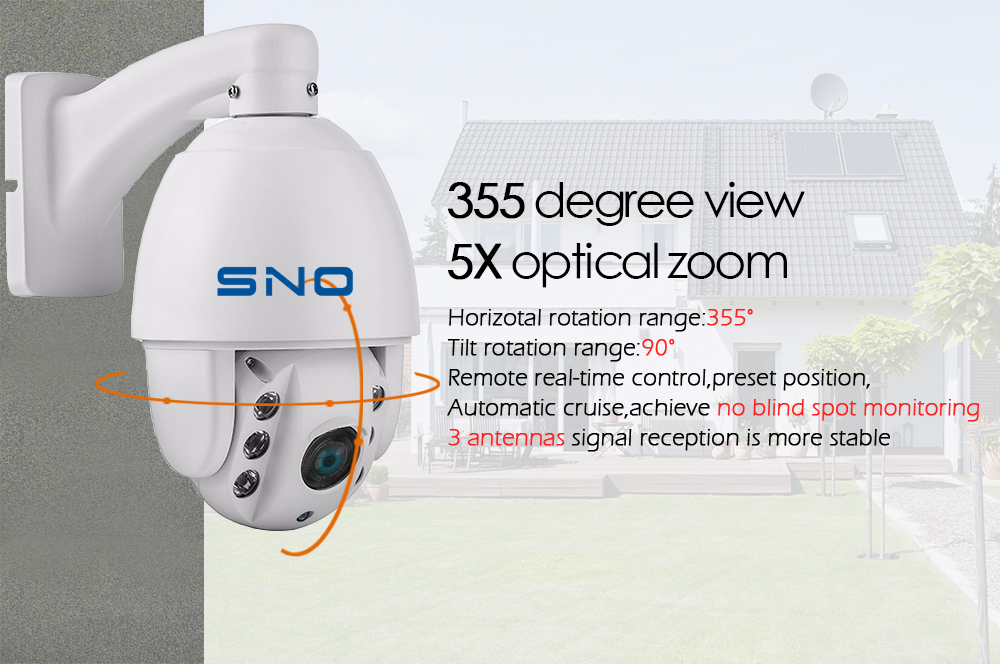

PTZ | Rotation angle | Horizon: 0~355 Vertical: 0~90 |
Horizontal speed | 20~ 40 | |
Vertical speed | 10~ 20 | |
Preset | Support 8 preset points | |
General specification | Power | DC12V 2A |
Operating environment | Environment -20℃~+60℃(-4℉~+140℉), Humidity 10%~90%, non-condensing | |
Waterproof level | IP66 | |
Product size | 239mm*137mm*215mm(L*W*H) | |
Product weight | 1.3kg | |
Package size | 260mmx230mmx170mm(L*W*H) | |
Package weight | 1.7kg | |
Reset button | Support |
